2-Channel Lightweight Digital Storage 20MHz Handheld Oscilloscope
with Color LCD Display  20
MHz Oscilloscope handheld OS-1022


20 MHz Oscilloscope handheld Model:OS-1022
This handheld oscilloscope multimeter is a great tool for
industrial troubleshooting, Auto diagnostic and field service
applications at affordable price. Make sure your measurements
precisely tested by using this rugged, small and light weight tool

It can be operated by either battery powered or 8.5V/1500mA
DC adapter(Standard Accessoriesl). It has optically sealed
USB transfer, and can measure DC V up to 1000V, AC up to
750V, frequency up to 20MHz and etc.
Key Features:
Product ID: OS-1022
1. Autoscale
2. 20 Automatic Measurements
3. 3 in 1(DSO+Multimeter+Cymometer)
4. Bandwidth: 20 MHz
5. Support USB for data transmission to PC
6. Replaceable li-ion battery back up (6
hours)
7. USB Flash Disk Storage
8. FFT
Sample Rate ( Real time )  100MS/s
Horizontal Scale(S/div)  5ns/div~100s/div
step by 1~2.5~5
Rise time(at input, typical)  ≤17.5ns
Display  3.7 inch color display with TFT panel(640×480 pixels, 65535 colors)
Channels  Dual
Input impedance  1MΩ±2%,in parallel with 20pF±3pF
Record length  Max. 6000 points on each channel
Interpolation  (sin x)/x
Probe attenuation factor  1X,10X
Input coupling  DC, AC, GND

DC accuracy(Average)  Average>16:±(5% reading+0.05div) for △V
Vertical Sensitivity  5mV/div~5V/div (at input)
Vertical resolution (A/D)  8 bit(2 channels simultaneously )
Max. Input Voltage  400V (PK-PK) (DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:
1)
Trigger Type  Edge, Video, Alternate
Trigger Mode  Auto, Normal, Single
Trigger level  ±6 divisions from screen center
Acquisition modes  Sample, Peak Detect and Average
DC gain accuracy  ±3%
Automatic Measurement  Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,
Overshoot
,Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B、
Delay A→B
Waveform math  +, -, ×, ÷, FFT
Waveform storage  4 waveforms
Lissajou’s
figure  Bandwidth  20MHz
Phase difference  ±3 degrees
Communication interface  USB
Power supply  100V-240V AC, 50/60Hz
Li-ion battery  7.4V, 6 hours operation

Multimeter specifications
Full scale reading  3 3/4 digits (Max.4000-count)
Input Impedance  10 MΩ
Capacitance  51.2nF-100uF:±(3%±3 digit)
Voltage  VDC:400mV,4V, 400V: ±(1±1digit) Max.input:DC 1000V, VAC:4V,40V,
400V:±(1±3digit)
Frequency:40Hz-400Hz, Max:input:AC 750V(virtual value)
Current  DCA:40mA, 400mA:±(1.5%±1 digit) 10A:±(3%±3digit)
DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3%±3digit)
Impedance  400Ω:±(1%±3digit), 40Ω

General specifications
Interface  USB Data Cable (Transfer waveform data to a PC)
Power  Supply:100V~240V AC,50/60Hz   DC input: 8.5VDC, 1500mA
Battery: 6 hours
Dimension  180mm x 115mm x 40mm
Weight  645g


--------------------------------------------------------------------------------

TECPEL CO., LTD

E-MAIL: sales@tecpel.com Web-site: http://www.tecpel.com
TEL:2-27375866 FAX:886-2-27373343

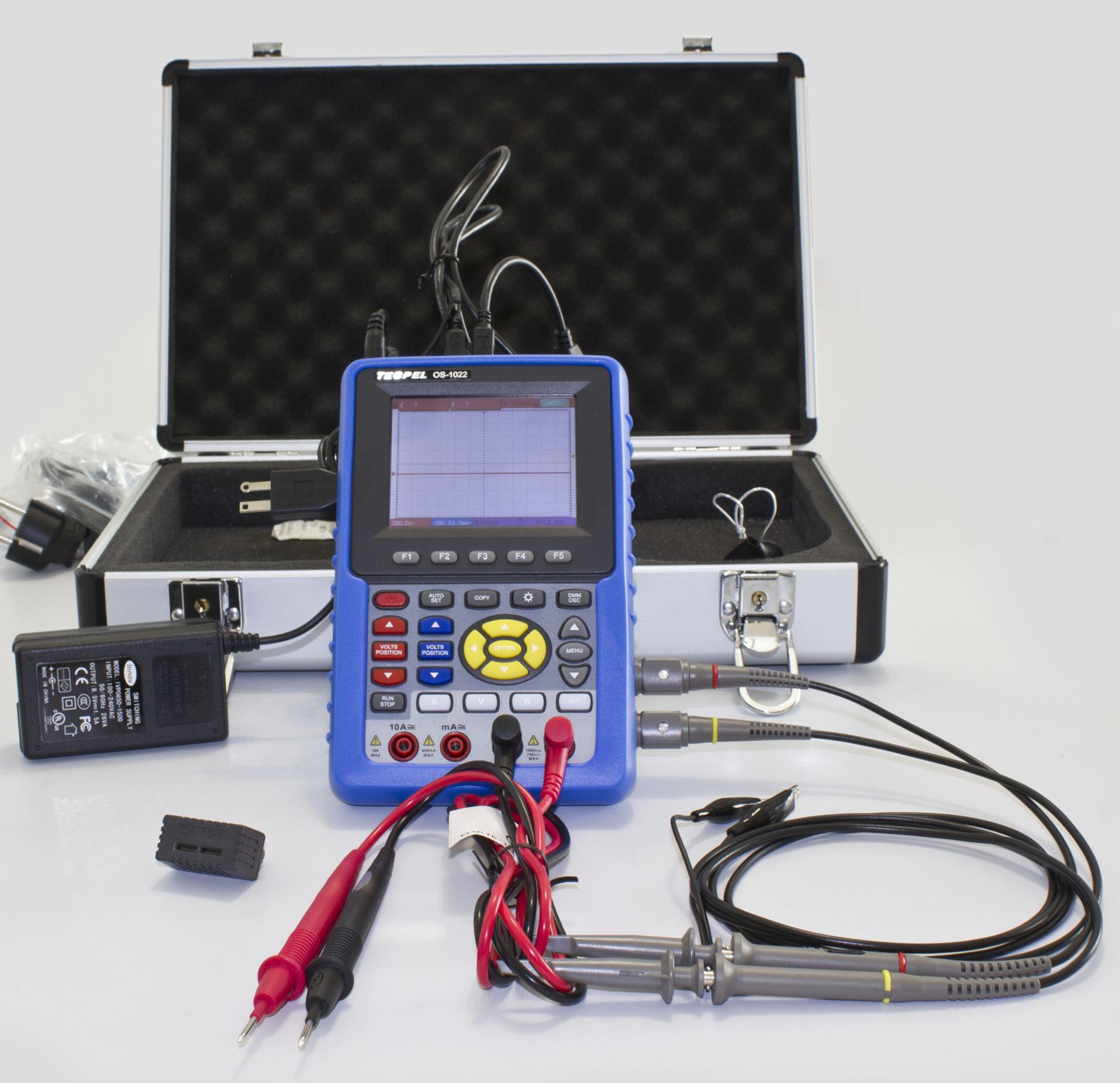

20MHz Digital handheld oscilloscope Tecpel OS-1022 carrying case

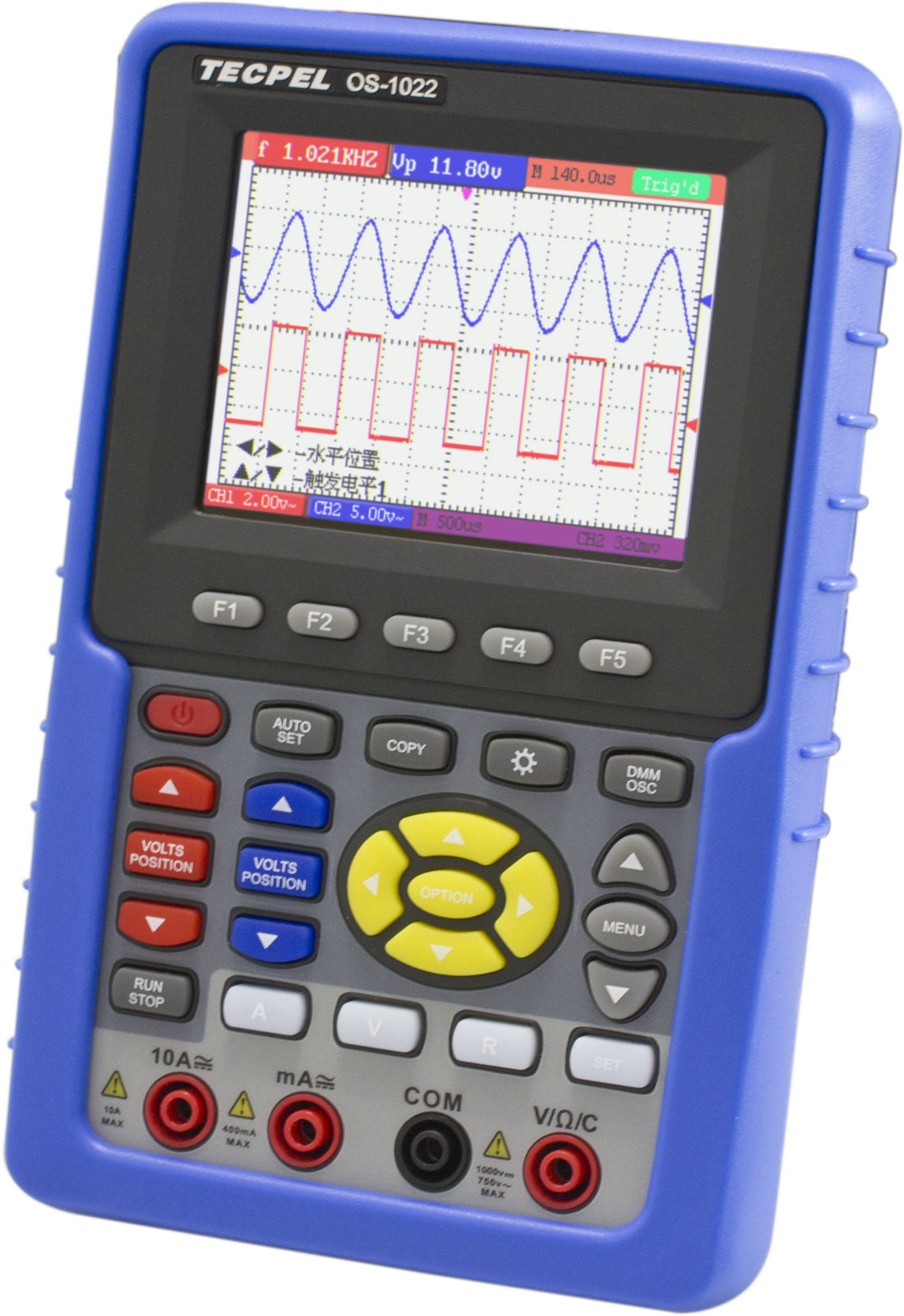

20MHz handheld digital
