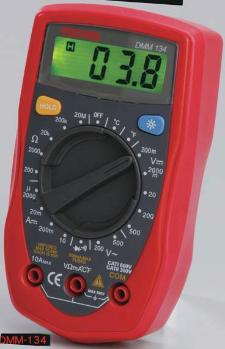

Product ID: DMM 134


Palm Size Digital Multimeter
Features:
  • 3 1/2 digits, Max 1,999 counts display
  • 7 Functions, 19 ranges
  • Temperature measurement -40oC ~ 1832oC.
  • Resistance Measurement up to 200M Ohm
  • Continuity Beeper
  • Data Hold Function.




Specifications:

DMM 134 SPECIFICATIONS
Palm Size Digital Multimeters
SPECIFICATIONS Basic Functions Range Best Accuracy
DC Voltage 200mV/2000mV/20V/200V/500V (0.5%+2)
AC Voltage 200V/500V (1.2%+10)
DC Current 2000mA/20mA/200mA/10A (1%+2)
Resistance 200W/2000W/20kW/200kW/20MW (0.8%+2)
Temperature (oC) -40oC ~ 1000oC (1%+3)
Temperature (oF) -40oC ~ 1832oC (1%+4)
Special Functions
Diode
Continuity Buzzer
Data Hold
Display Backlight
Low Battery Display
Input Impedance for DC
Voltage Measurement Around 10MW
Max. Display 1999
GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 48 x 16mm
Product Colour Yellow and Grey
Product Net Weight Around 156g
Product Size 130 x 73.5 x 35mm
Standard Accessories Test Lead, Battery, English Manual,
Point Contact Temperature Probe, Holster
Standard Individual Packing Gift Box
Standard Quantity Per Carton 60 pcs
Standard Carton Measurement Around 486 x 345 x 310 mm
(Around 0.052 CBM Per Standard Carton)
Standard Carton Gross Weight Around 18kg
Certificate: CE

Ordering information:
DMM-134

Minimum Order: Negotiable
