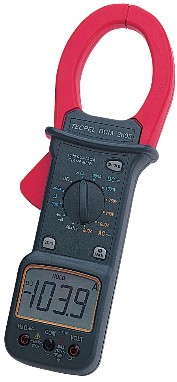

Digital Clamp-on Meters
1000A AC/DC Amp +Frequency

Model  DCM-2605

Features :

  • 3 1/2 digit display
  • AC/DC current up to 1000A
  • AC voltage up to 750V
  • DC voltage up to 1000V
  • Resistance up to 200kΩ
  • Frequency up to 40kHz
  • Display hold function
  • Audible continuity test
  • Over range indication
  • Maximum recording mode
  • Confirm to the IEC-1010-1
  • UL 1244/UL3111, CE standard
  • Hand guard protection
  • Carrying case

Specifications :

DC Voltage Ranges:
1000V,±(0.5%+1dgt)

AC Voltage Ranges:
200V,750V, ±(1.5%+4dgts)

AC Current Ranges:
200A,1000A, ±(1.5%+5dgts)

DC Current Ranges:
200A,1000A, ±(1.5%+5dgts)

Resistance Ranges:
200Ω,200KΩ, ±(1.0%+3dgts)

Continuity Test:
Audible indication less than 30Ω

General

Power Requirement:
One 9V battery

Dimensions:
10.9"x4.0"x1.9" (277x102x49mm)

Weight:
18.9 oz/540g

Accessories:
Test leads; soft carrying case, battery, and owners manual
