Product ID: DCM-032

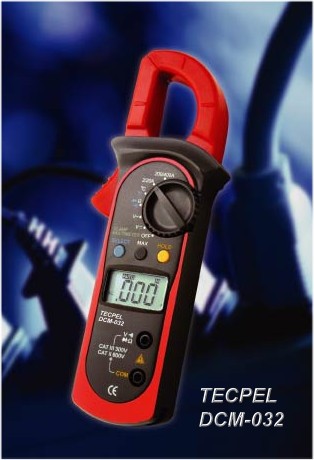

1999 count clamp meter ( DCM-032)
Low Cost Digital Clamp Meter
Model: DCM-032
DC Voltage 200mV~600V
AC Voltage 2V ~600V
AC Current 2A ~400A
Resistance 200 ~20 Ohm
Temperture(oC) -40oC~1000oC
Temperture(oF) -40oF~1832oF

Special Functions
Auto Ranging
Diode
Continuity Buzzer
Max Hold
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC
Voltage Measurement Around 10M Ohm
Max Display 1999










SPECIFICATIONS
SPECIFICATIONS Basic Functions Range Best Accuracy
DC Voltage 200mV/2V/20V/200V/600V (0.8%+1)
AC Voltage 2V/20V/200V/600V (1.2%+5)
AC Current 2A/20A/200A/400A (1.5%+5)
Resistance 200W/2kW/20kW/200kW/2MW/20MW (1%+2)
Temperture(oC) -40oC~1000oC (1%+3)
Temperture(oF) -40oF~1832oF (1%+6)
Special Functions
Auto Ranging
Diode
Continuity Buzzer
Max Hold
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC
Voltage Measurement Around 10MW
Max Display 1999
GENERAL CHARACTERISTICS
GENERAL CHARACTERISTICS Power 3V Battery (AAA) x 2
LCD Size 35.6 x 18mm
Product Colour Red and Grey
Product Net Weight 220g
Product Size 210 x 75.6 x 30mm
Standard Accessories Test Lead, Batteries, English Manual,
Point Contact Temperature Probe, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40 pcs
Standard Carton Measurement 485 x 415 x 290 mm
(0.058 CBM Per Standard Carton)
Standard Carton Gross Weight 15kg
*Available at Extra Cost
Specifications and other information are subject to change without further notice.




Certificate: CE

Ordering information:

3 1/2 Digital Clamp-on Meter DCM-032


Minimum Order: Negotiable
