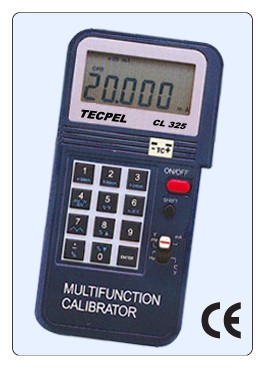

MULTIFUNCTION CALIBRATOR
MODEL CL-325
Features

  • 4-20mA (1KΩ load, 24V Loop Supply)
  • 0-100.00mV,0-1.000V, 0-12.000V
  • K, J, E, T Thermocouple (° C and ° F)
  • Frequency 1-62500 Hz
  • 0.025% Basic Accuracy
  • Easy Key-pad Operation
  • Easy Step and Auto Ramp Functions
  • 0-20mA, 0-24mA selectable
  • 0-100% Input (mA, mV, V )
  • Beeper warning when output is open
(mA) or  short (mV,V)













































Electrical Specification
(23°C ± 5°C, 3 minutes after power is on)

mA DC Current
(1KΩ Max. Load, 24V Loop Supply)
Range                                                 Resolution                 Accuracy
4 - 20mA,   0 - 20mA,    0 -24 mA        1μA ± 0.025%              ±3μA
Beeper warning when output is open and specified current output > 1mA


mV, V DC Voltage (1mA Supply Current)
Range                 Resolution                Accuracy
0 - 100.00mV         10μV                         ± 0.05% ± 30μV
0 - 10.000V            1mV                         ± 0.05% ± 3mV
0 - 1.0000V            100μV                      ± 0.05% ± 300μV
Beeper warning when output is short and specified voltage output > 10mV

K, J, E, T type Thermocouples
( 1°C,1°F Resolution,1KΩ load Min. )
Range                         Accuracy                 Range                      Accuracy
K: -200 to 0 °C                ± 1.1°C                 K: -328 to 32°F         ± 2.0°F
K: 0 to 1370 °C               ± 0.8°C                 K: 32 to 2400°F         ± 1.5°F
J: -100 to 0 °C                ± 0.9°C                 J: -148 to 32°F          ± 1.6°F
J: 0 to 760 °C                 ± 0.7°C                 J: 32 to 1400°F          ± 1.2°F
E: -100 to 0 °C                ± 0.9°C                 E: -148 to 32°F          ± 1.6°F
E: 0 to 700 °C                 ± 0.7°C                 E: 32 to 1292° F         ± 1.2°F
T: -200 to 0 °C                ± 1.0°C                 T: -328 to 32°F           ± 1.8°F
T: 0 to 400 °C                 ± 0.8°C                 T: 32 to 752°F            ± 1.5°F


Frequency (1 - 62.5KHz, 1KΩ Load Min.)
Range         Resolution                 Accuracy
1 - 125 Hz         1 Hz                         ± 0.04Hz
126 - 62.5K      604 Selectable Frequencies

General Specification

Battery Type: 9V Alkaline Battery
Power Consumption: 60mA - 180mA (depends on output)
Low battery: 5.5V at 150mA Load
Display: 4 and 5 Digits
Operating Temperature: 0 to 50°C ( 32 to 122 °F)
Operating Humidity: Less than 85% relative
Storage Temperature: -20 to 60° C (-4 to 140 °F)
Storage Humidity: Less than 85% relative
Dimension: 88 x 168 x 26 mm
(3.46" x 6.61" x 1.03")
Weight:  330 g / 11.63 oz
Accessories: Carrying case x 1
Users Manual x 1
K type thermocouple connector
External Battery Pack Holder
1.5V AA Batteries x 6
Test leads with Alligator clip x 1

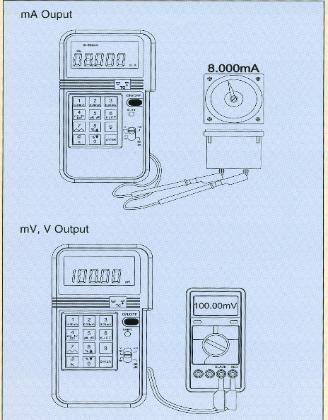

Application:











































Order Information: Model: CL-325
