Product ID: CA-1000D

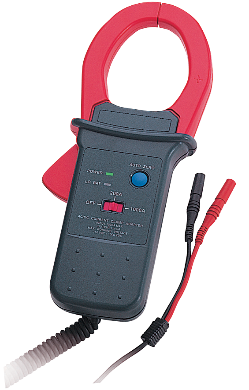

1000 Amp AC/DC Clamp Adapter

Model  CA-1000D  Features :

* 1000A AC or DC Current Clamp
* Measure current without disconnecting
circuit under test
*Measure to 1000A DC or AC
*Outputs 1mV per Amp,
operates on 2V range of any DMM













This Tecpel AC/DC current clamp in an accessory which will allow your
multimeter to measure electrical current up to 1000Amperes DC/AC, with a
frequency response up to 400MHz. When measuring current with this clamp,
There is no need to break a circuit or to affect the isolation.







CA-1000D SPECIFICATIONS:
Model : CA-1000D
Click here for larger image
Specifications :
DC Current Range:
0-1000A±(1.5~3.5%+3A)

AC Current Range:
0-1000A±(1.5~3.5%+3A)

Output
0-1V rms or DC with>=1MΩ input impedance

Transfer Rate:
1mV/1A

Overload Protection
1200A for 60 seconds maximum.

General

Jaws Opening Capability:
57mm Conductor, 70 x 18 mm bus bars

Power Requirement:
One 9V battery

Dimensions:
9.6"x3.9"x1.6" (244x100x40mm)

Approval: CE mark


Download English Manual




Ordering information:
CA-1000D

Minimum Order: Negotiable
